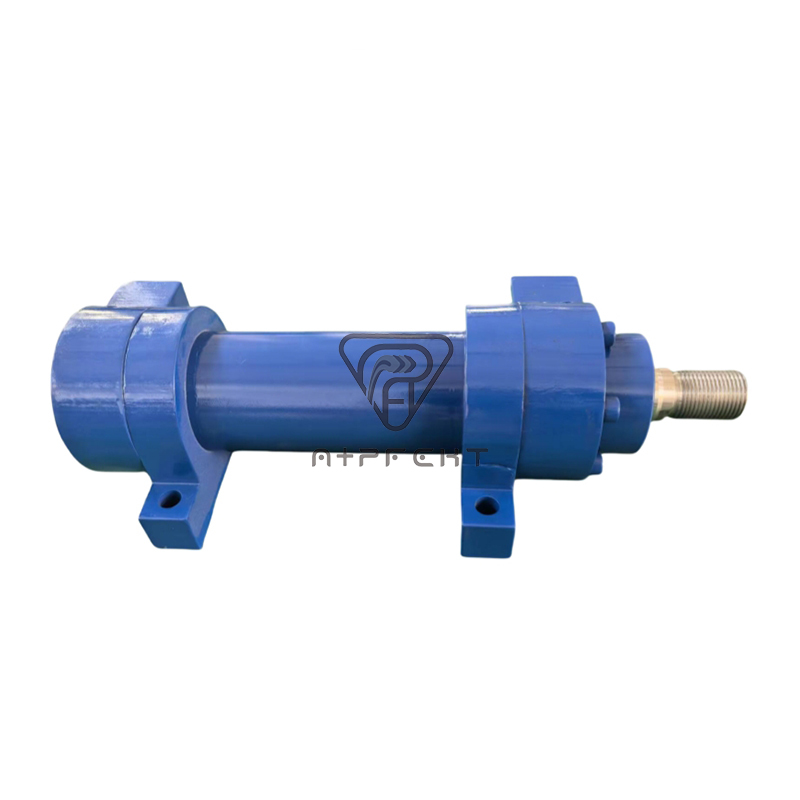

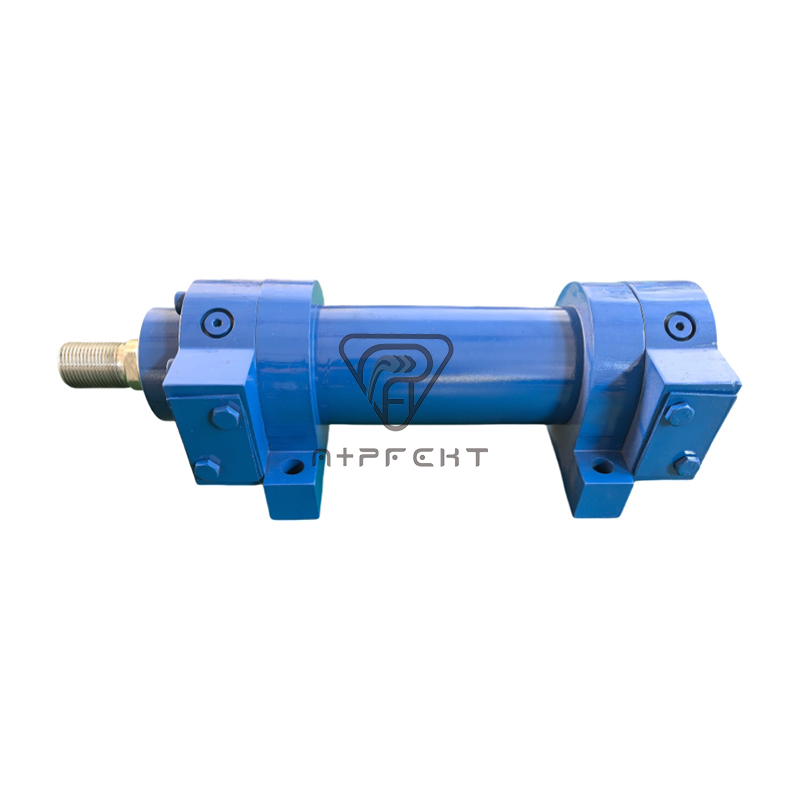

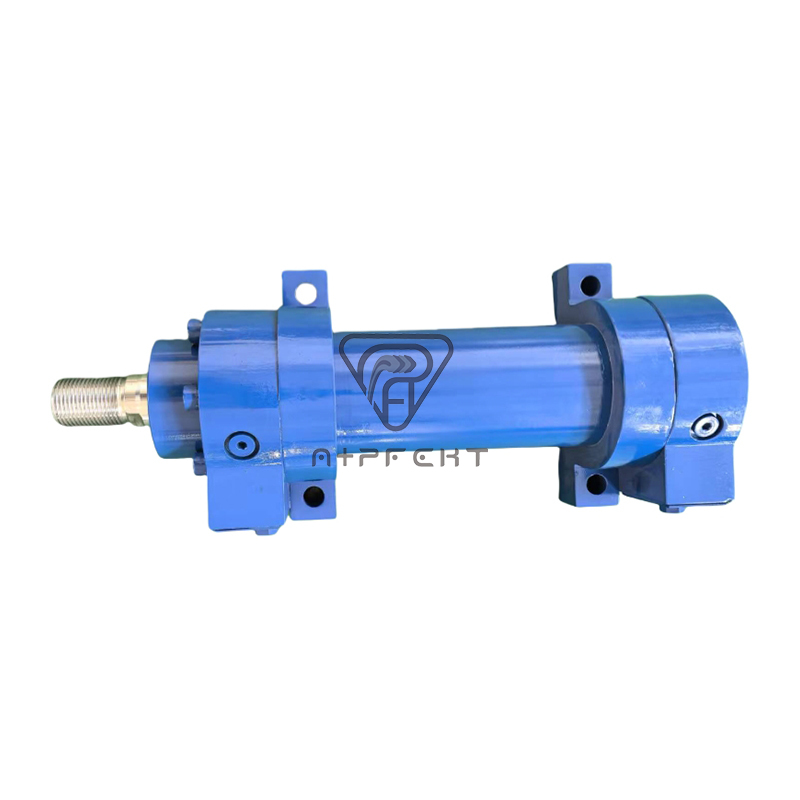

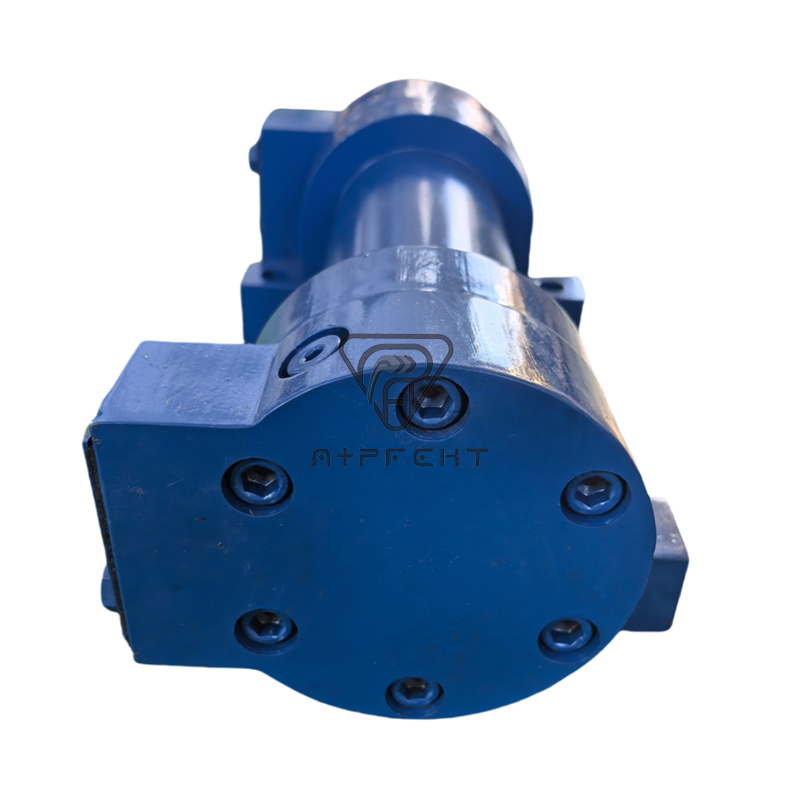

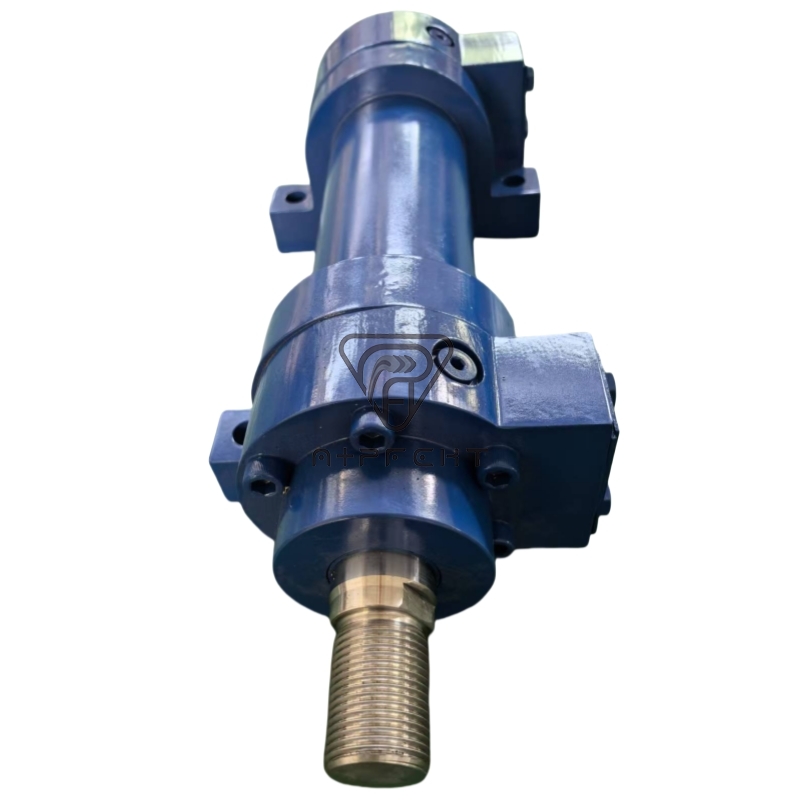

Double-Ended Drive Positioning Cylinder

Product Attributes

Packaging & Delivery

The double-ended main drive shaft positioning double acting hydraulic cylinder with flat head connection delivers unique advantages for heavy rotating equipment. These specialized actuators provide precise axial positioning of main drive shafts while accommodating rotational movement through their dual-flange design, enabling accurate alignment of gear couplings and universal joints in power transmission systems. The forged steel flat head interface ensures positive torque transfer without slippage, withstanding radial loads up to 15% of the axial thrust capacity. Key benefits include simultaneous position control and vibration damping - critical for rolling mill drive trains where misalignment can cause catastrophic bearing failures. The through-shaft design allows bi-directional force application (typically 50-500 ton capacity) while maintaining ±0.05mm positioning repeatability through integrated LVDT feedback.

Constructed with hardened steel wear bands and multi-port hydraulic connections, these Industrial Hydraulic Cylinder operate reliably in harsh environments like steel mill roughing stands (withstanding 150°C continuous heat and scale contamination). The flat head mounting surface (machined to Ra 0.8μm finish) ensures perfect mating with drive couplings, while the double-gland seal arrangement prevents lubricant contamination in critical gearbox applications. Advanced versions incorporate hydrostatic bearing pads to accommodate slight angular misalignment during thermal expansion of drive trains.

Primary applications include:
● Precision positioning of rolling mill spindle assemblies
● Continuous casting machine segment alignment
● Heavy-duty press drive shaft synchronization
● Marine propulsion shaft thrust compensation

These hydraulic cylinders for Sale reduce drive system maintenance costs by 30-40% through vibration absorption and perfect alignment maintenance, while their rugged construction delivers over 5 million cycles in continuous operation. The integrated design eliminates separate alignment jacks and load cells, saving installation space in crowded mill environments. Modern smart versions feature pressure-mapping sensors in the flat head interface to monitor load distribution and predict coupling wear patterns.
